Hot selling super performance led light bar 15*45 degree edge light led bar lights 24V

FOB Reference Price:Get Latest Price
$6.35 - $6.99 / Pieces | 500 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Item Type:
Advertising Lights
Light Source:
LED, 3030 White SMD LED
Input Voltage(V):
DC24V
Lamp Power(W):
11
Lamp Luminous Flux(lm):
800-900
Lamp Luminous Efficiency(lm/w):
82
CRI (Ra>):
70
Color Temperature(CCT):
Pure White
Working Temperature(℃):
-25 - 60
Working Lifetime(Hour):
50000
IP Rating:
IP65
Certification:
CE, EMC, LVD, RoHS
Emitting Color:
Pure white
Lamp Body Material:
Aluminum
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
3030
Model Number:
DLW445E
Dimension:
250*24*13mm
Available Color:
PW
Working Voltage:
DC24V
Housing Material:
Aluminum housing
PCB:
2.0mm thickness Aluminum pcb
Application:
Single & double-side Light Box
IP Grade:
IP65
Warranty:
3 Years
Certificate:
CE & ROHS
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
384pcs/carton.
outer carton size:52*37*26cm
Port
SHEN ZHEN
Lead Time :
Normal order takes 9-10days, bulk order needs 12-15days
Factory overviews

Hot selling super performance led light bar 15*45 degree edge light led bar lights 24V



















Detailed Images















Product Description



Application



Widely used in 6-25 cm the thickness of the single advertising signage or advertising light boxes.









Product Features



1.Adopt 3030 LED as light source with the low thermal resistance, no dark spot, low light decay and good uniform illumination, high quality led light bar.



2.Low power consumption, high brightness and 3 years warranty long service life led bar.



3.Using glue waterproof technology with good waterproof effect, super performance led bar lights.



4.Adopt imported optical lens with a nice appearance, with safe and reliable constant voltage 24V DC.



5.LED light bar by IC switch to drive constant current circuit.



6.Aluminum PCB exposed with better heat dissipation.









Installation



 1.Main power cable using 2x1.5mm² above, if LED Rigid Bar lines need to lengthen the lamp power must be selected wire above 0.75mm² / 18 # specifications, in order to avoid overloading the power cord leading to excessive heat, causing adverse consequences. Switching power supply and power cord length straight between the lamp must not exceed 3 meters, if not the line loss will increase, the total power increases.



2.Please use the connection diagram in the wiring scheme.



3.When the screws into the lamp mounting shoud be holded straight holes, and locked.



4.When LED Rigid Bar trails have bare wire conductor, first with diagonal pliers wire stripping of about 10mm, and screwed into the connection head insulation protection.



5.To ensure waterproofing and corrosion protection, power line after screwing Terminals, recommend injection with one-component silicone (or neutral glass, plastic, or with waterproof grease), covering bare copper wire power cord for protection.



6.This product Do not touch live, live working.



7.Recommend switching power supply with the relevant regulatory certification (have short circuit protection, overvoltage protection, overcurrent protection).











Warranty



3 years











 Electric Parameters





Part No.

LED source

Color

CCT             (K)

Voltage ( V )

Power

( W )

Luminous Flus ( LM )

Lux

(LM/W)

Optical Lens ( °)

DLW445E

 3030

Pure white

6000-7000

24

11



800-900



73-82

15*45


























 Other Parameters





Standard group number(PCS)

Shell color

Driving Mode

 Weight

(g/pcs)

Life time

Work environment(℃)

Storage temperature(℃)

IP Rank

10

\

constant current

65

3years /25000H

-25-+60

-25-+80

IP65

















Remark:

1.Testing environment temperature is 25±2;

2.The above data are typical values, the actual data of the product may be different from the typical data. Data is subject to change without prior notice.











Dimension





                                                                                                                                                                                                                                                    Unit:mm [in]

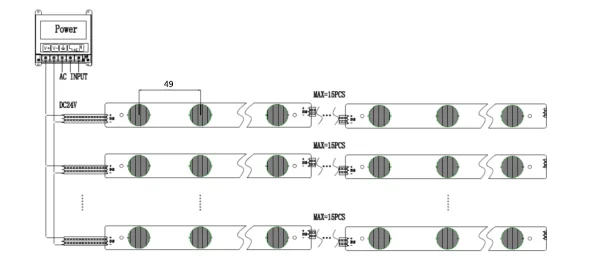

 Connection Diagram









Production Flow















Packaging & Shipping













Product Application














Certificates











Our Services



1. For all your inquires about us or our products, we will reply you in detail within 12 hours.
2. well-trained and passional sales & after- sale services who can speak fluent English language .
3. Offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.
4. Experienced R&D engineers and we have strong ability to do ODM projects.
