Wholesale high power 9W 3-LED waterproof led light bar backlight 24v

  • 100 - 499 Pieces
    $2.25
  • 500 - 999 Pieces
    $2.18
  • 1000 - 2999 Pieces
    $2.14
  • >=3000 Pieces
    $2.08
Model Number:
DGW435E
Lead Time:
Quantity(Pieces) 1 - 500 501 - 1000 1001 - 3000 >3000
Est. Time(days) 10 13 15 Negotiable
Customization:
Customized logo (Min. Order: 2000 Pieces)
Report Suspicious Activity
Overview
Quick Details
Type:
High Power LED
Chip Material:
GaAs
Emitting Color:
pure white
Luminous Intensity:
72lm/w
Luminous Flux(lm):
480
Optical Attenuation(%):
3
Power:
6.7w
Power Dissipation:
6.7
Viewing Angle(°):
20*40
Color Rendering Index(Ra):
70
Color Temperature:
6000-6500K
Operating Temperature(℃):
-25 - 60
Storage Temperature(℃):
-25 - 80
Place of Origin:
Guangdong, China
Brand Name:
Genesis Photonics
Certification:
CE, RoHS
Dimension:
297*27.5*15mm
Available Color:
PW/WW/CW
Working Voltage:
DC24V
Housing Material:
Aluminum housing
PCB:
1.2mm thickness Aluminum pcb
Light Source:
3535 White SMD LED
Application:
Single & double-side Light Box
Connection:
Wire connector
Warranty:
2 Years
Certificate:
CE & ROHS
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
250pcs/carton.
outer carton size:52*37*26cm
Port
SHEN ZHEN
Lead Time :
Quantity(Pieces) 1 - 500 501 - 1000 1001 - 3000 >3000
Est. Time(days) 10 13 15 To be negotiated
Factory overviews

Wholesale high power 9W 3-LED waterproof led light bar backlight 24v

















Detailed Images















Product Description

 Wholesale high power 9W 3-LED waterproof led light bar backlight 24v

Application



Widely used in 12-25 cm the thickness of the single advertising signage or advertising light boxes.









Product Features



1.Adopt Genesis Photonics high bright SMD 3535 LED as light source with the low thermal resistance, no dark spot, low light decay and good uniform illumination, high performance led light bar.



2.Low power consumption, high brightness and 3 years warranty long service life.



3.Using glue waterproof technology with good waterproof effect led bar backlight.



4.Adopt optical lens with a nice appearance, with safe and reliable constant voltage 24V DC, 24v led light bar.



5.LED Bar by IC switch to drive constant current circuit.



6.Aluminum PCB exposed with better heat dissipation, high quality led light bar.









Installation



 1.Main power cable using 2x1.5mm² above, if LED Rigid Bar lines need to lengthen the lamp power must be selected wire above 0.75mm² / 18 # specifications, in order to avoid overloading the power cord leading to excessive heat, causing adverse consequences. Switching power supply and power cord length straight between the lamp must not exceed 3 meters, if not the line loss will increase, the total power increases.



2.Please use the connection diagram in the wiring scheme.



3.When the screws into the lamp mounting shoud be holded straight holes, and locked.



4.When LED Rigid Bar trails have bare wire conductor, first with diagonal pliers wire stripping of about 10mm, and screwed into the connection head insulation protection.



5.To ensure waterproofing and corrosion protection, power line after screwing Terminals, recommend injection with one-component silicone (or neutral glass, plastic, or with waterproof grease), covering bare copper wire power cord for protection.



6.This product Do not touch live, live working.



7.Recommend switching power supply with the relevant regulatory certification (have short circuit protection, overvoltage protection, overcurrent protection).











Warranty



2 years











 Electric Parameters





Part No.

LED source

Color

CCT             (K)

Voltage ( V )

Power

( W )

Luminous Flus ( LM )

Lux

(LM/W)

Optical Lens ( °)

DGW435E

DIW435E

3535   CREE

Pure white

6000-6500

24

6.7



480



72

20*40


























 Other Parameters





Standard group number(PCS)

Shell color

Driving Mode

 Weight

(g/pcs)

Life time

Work environment(℃)

Storage temperature(℃)

IP Rank

15

\

constant current

65

3years /25000H

-25-+60

-25-+80

IP65

















Remark:

1.Testing environment temperature is 25±2;

2.The above data are typical values, the actual data of the product may be different from the typical data. Data is subject to change without prior notice.







 Wholesale high power 9W 3-LED waterproof led light bar backlight 24v



Dimension





                                                                                                                                                    Unit:mm [in]

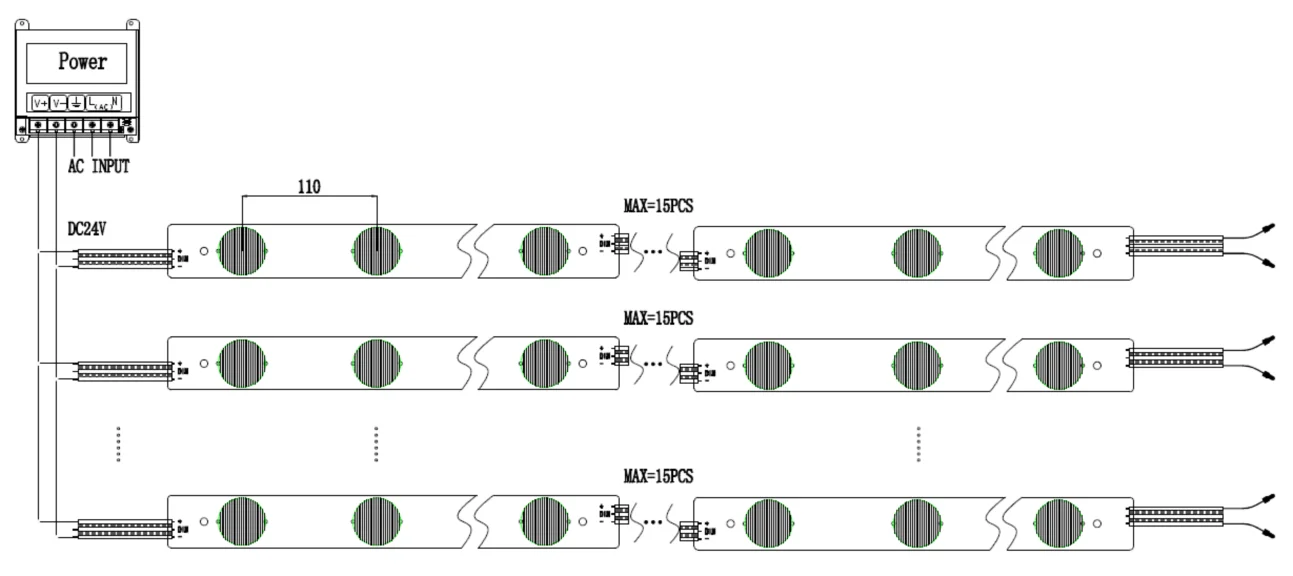

 Connection Diagram









Production Flow















Packaging & Shipping













Product Application














Certificates











Our Services



1. For all your inquires about us or our products, we will reply you in detail within 12 hours.
2. well-trained and passional sales & after- sale services who can speak fluent English language .
3. Offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.
4. Experienced R&D engineers and we have strong ability to do ODM projects.
