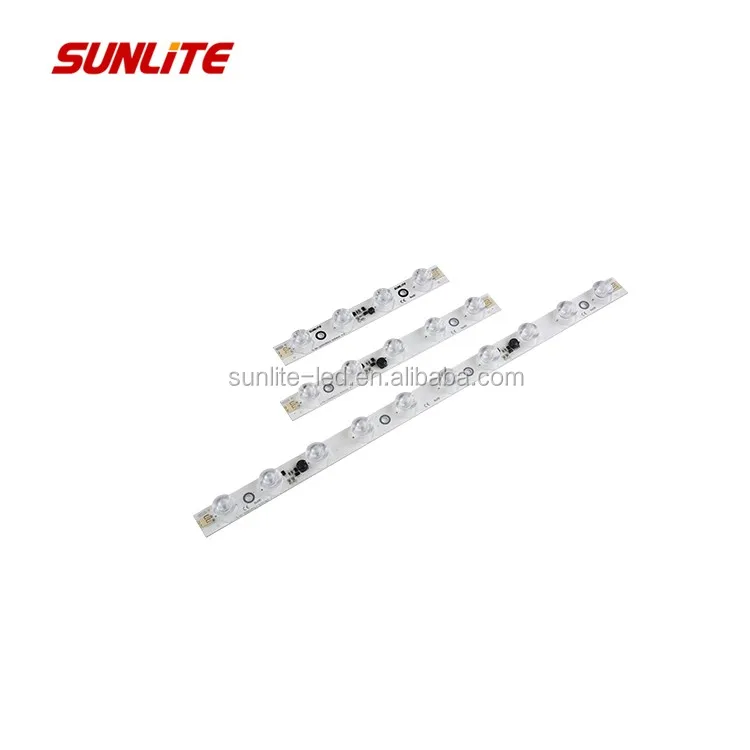

New product high performance OSRAM3030 LED light bar for advertising

  • >=500 Pieces
    $7.00
Color:
Model Number:
DLW445E
Lead Time:
Quantity(Pieces) 1 - 5000 >5000
Est. Time(days) 12 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Chip Material:
GaAs
Emitting Color:
Pure white
Luminous Intensity:
High Performance
Luminous Flux(lm):
850LM
Optical Attenuation(%):
3
Power:
11W
Power Dissipation:
11W
Viewing Angle(°):
15*45
Color Rendering Index(Ra):
75
Color Temperature:
6000-6500K
Place of Origin:
Guangdong, China
Brand Name:
OSRAM3030
Certification:
CE, RoHS
Available color:
Pure white
LED Chip:
5 chips
Voltage:
DC 24V
CRIra:
≥80
Lighting efficiency:
82lm/w
Product size:
250*24*15mm
IP Grate:
IP33
Warranty:
3 years
Application:
6-20cm depth light box
Product name:
New product high performance OSRAM3030 LED Rigid light bar
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month New product high performance OSRAM3030 LED Rigid light bar
Packaging & Delivery
Packaging Details
Packing instruction
1.carton package, carton size:252*30*28mm
2.outer carton size:457*337*320mm
3.10PCS/layer,10layer/carton, total 100PCS
4.net weight(NW)9.5(1-10%)kg
5.gross weight(GW):10(1-10%)kg
New product high performance OSRAM3030 LED Rigid light bar
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 5000 >5000
Est. Time(days) 12 To be negotiated
Specification

New product high performance OSRAM3030 LED Rigid light bar for advertising

Electric Parameters
Product No.
DLW445E
Beam angle
With 15*45°lens
Lumen
850lm/pc
RA
≥75
Voltage
DC 24V
IP Rank
IP33
Power
11W
Warranty
3 Years

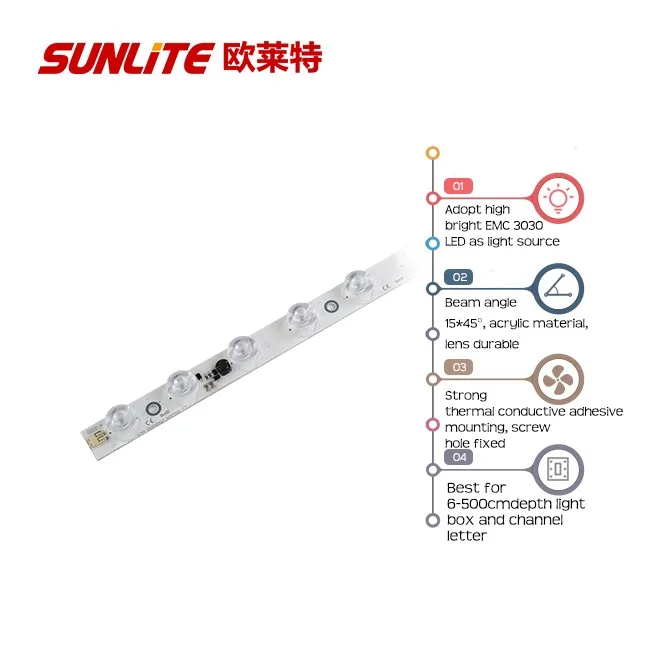

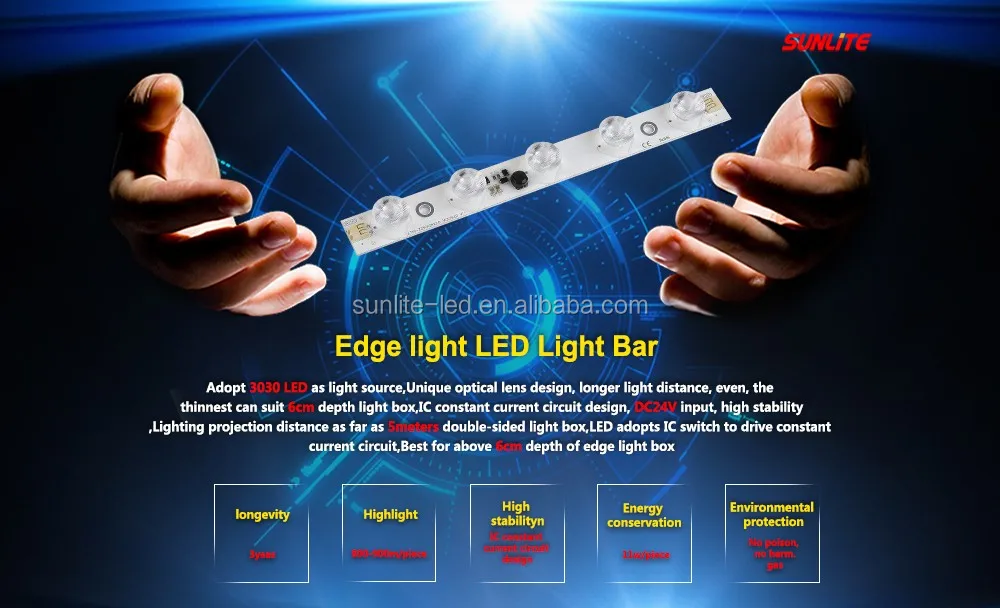

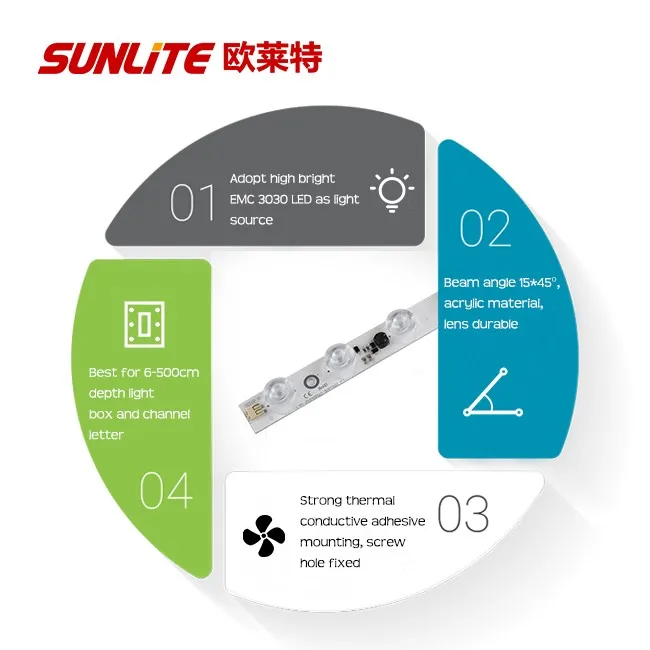

Product Features

1.Adopt OSRAM3030 high power LED as light source ,lighting efficiency is high as 82lm/W

2.Lens design to solve the light box surface without ribs stripe,high brightness and uniform illumination

3.Constant current drive,aluminum PCB for better heat dissipation energy saving and environmental protection

4.Best for 6-25cm depth big light box

Installation:

Installation method: Installed on the side of box, back glue auxiliary positioning, fixed with screw

Cascade cuttable: single led module can be cut
Product Description

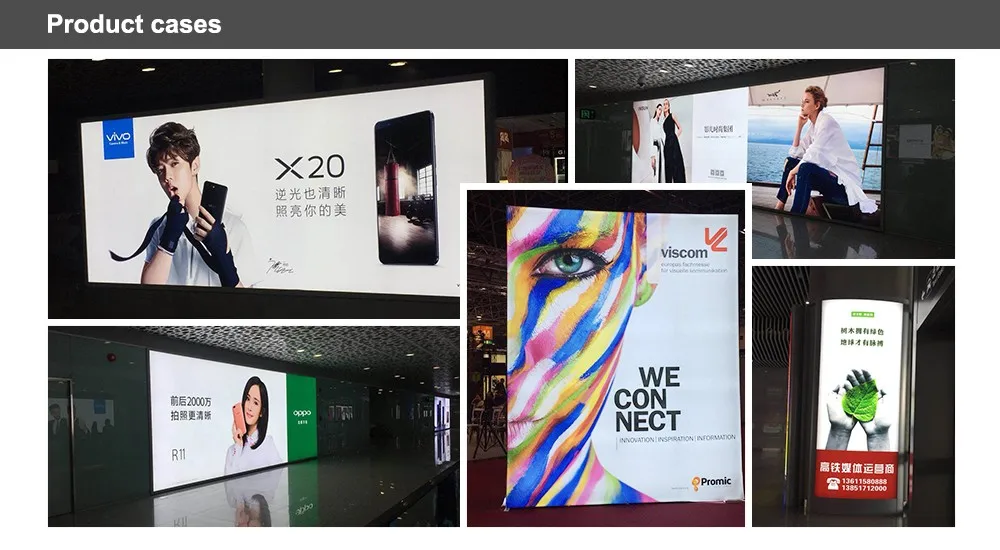

Applications

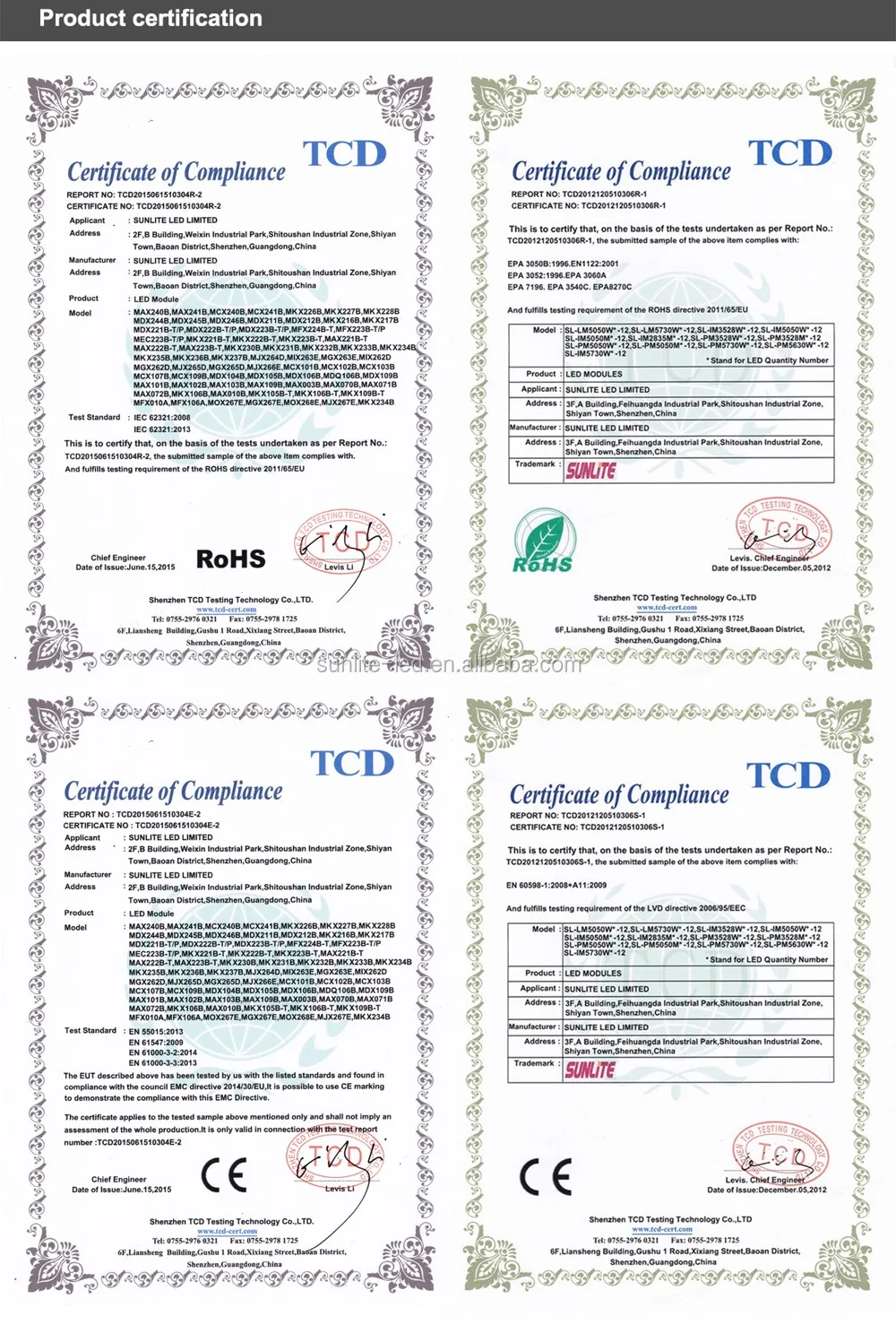

Certifications

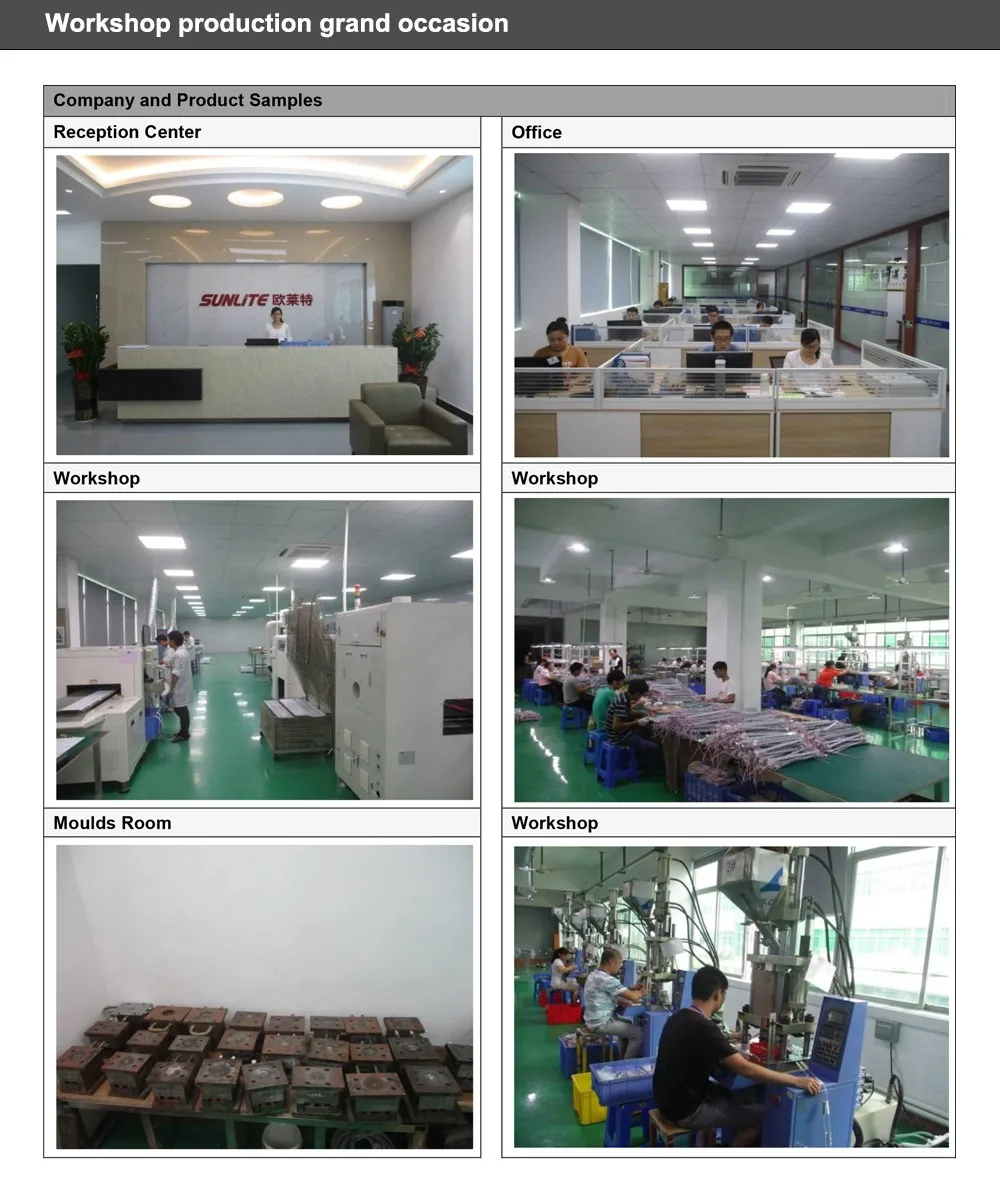

Company Information
Delivery
FAQ

Q1. Can I have a sample order for LED Injection Module?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 10-12 working days for order quantity more than

Q3. Do you have any MOQ limit for LED Injection Module?

A: Low MOQ, 5pcs for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on LED Injeciton Module?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 3-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.03%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
