Quick Details

  • Type: LED Modules
  • Model Number: MOX267E
  • Chip Material: GaAs
  • Emitting Color: pure white
  • Luminous Intensity: 93lm/w
  • Luminous Flux(lm): 140
  • Optical Attenuation(%): 3
  • Power: 1.5W
  • Viewing Angle(°): 6*45
  • Color Rendering Index(Ra): 75
  • Color Temperature: 6000-7000K
  • Operating Temperature(℃): -25 - 60
  • Storage Temperature(℃): -25 - 70
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: San an
  • Certification: CE, RoHS
  • Dimension: 46*31*14mm
  • Available color: PW/CW
  • Warranty: 5 Years

Packaging & Delivery

Packaging Details 20pcs modules per string, 50strings of 20pcs modules in each electrostatic bag, total 1000pcs/carton.
Delivery Time Shipped in 10 days after payment

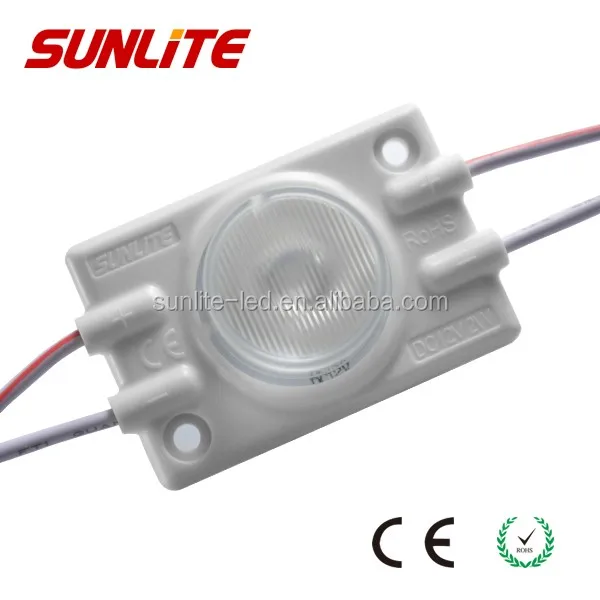

2835 1.5w 6*45 angle 10-20cm thickness light box lighting led injection module 2835 led module light











Product Description



Application



Applicable place: Shopping malls, airport, subway, bus station and other places of side lighting light box.

Scope of application: 10-20cm thickness of single-side/double-side light box.





Product Features



1.The housing using ABS flame retardant engineering material, high flame retardant, high safely and reliability.

2.Adopt high bright SMD 2835 LED, low light degradation, quick heat dissipation, high lighting efficiency, 2835 led module, module led

3.Injection craft, aluminum PCB exposed with better heat dissipation, led injection module 12v

4.Stable & reliable performance, long lifespan & good consistency

5.CE & RoHS certificates, IP65 protection class testing





Installation



Installation method: Installed on the side of box, back glue auxiliary positioning, fixed with screw

Cascade cuttable: single led module can be cut





Warranty



5 years







Electric Parameters





Part No.

Color

  CCT(K)



Beam angle

(°)

Output

(lm/piece)

CRI

Ra

Luminous efficacy

(lm/W)

Voltage

(V DC)

Current

(mA)

Power

(W/piece)

MOX267E

PW

7000

6X45

120-130

≥75

80-86.6

12

125

1.5

CW

10000



 Other Parameters



Standard connection qty(pcs)

Largest qty of cascade for single-ended power supply(pcs)

Largest qty of cascade for double-ended power supply( (pcs)

module weight (g)

Working environment temperature (°C)

Storage environment temperature (°C)

IP grade

20

30

50



 -25~+60

-25~+70

IP65





Remark:

1.Testing environment temperature is 25±2℃.

2.The above data are typical values, the actual data of the product may be different from the typical data. Data is subject to change without prior notice.

3.The modules are high-power products, can not use double-side power supply method.





Production Flow







Packaging & Shipping





Product Application





Certificates





Our Services

1. For all your inquires about us or our products, we will reply you in detail within 12 hours

2. well-trained and passional sales & after- sale services who can speak fluent English language .
3. Offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.
4. Experienced R&D engineers and we have strong ability to do ODM projects.
