High power led sidelight module 3030 led light for light box

FOB Reference Price:Get Latest Price
US $0.32-0.45 / Piece | 2000 Piece/Pieces (Min. Order)
Supply Ability:
1000000 Piece/Pieces per Month &High power led sidelight module 3030 led light for light box
Port:
SHENZHEN
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Model Number:
MJX266E
Chip Material:
GaAs
Emitting Color:
PW
Luminous Intensity:
High Intensity
Luminous Flux(lm):
120lm
Optical Attenuation(%):
3
Power:
1.2W
Power Dissipation:
0.3
Viewing Angle(°):
15*40
Color Rendering Index(Ra):
75
Color Temperature:
6500K
Operating Temperature(℃):
-25 - 60
Storage Temperature(℃):
-25 - 70
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SUNLITE
Certification:
CE, RoHS
Voltage:
12V
Warranty:
5 years
Color:
Pure White(6000-6500K)
Application:
10-20cm thickness of single side light box
Dimension:
38*22
LED Type:
SMD 3030/2835
IP Grade:
IP65 Waterproof
LED QTY:
1pcs
Material:
Aluminum PCB
Product name:
High power led sidelight module 3030 led light for light box
Packaging & Delivery
Packaging Details
20pcs modules per string, 5 strings of 20pcs modules in each electrostatic bag.;
Delivery Time
Shipped in 10 days after payment

High power led sidelight module 3030 led light for light box

Application:



Applicable placeShopping malls, airport, subway, bus station and other places of single-side light box.



Scope of application: 10-20cm thickness of single side light box



Product Features



1. product use flame retardant engineering plastics shell, high reliability.



2,Use EMC light source, low lumens depreciation, fast heat dissipation, high efficiency.



3. PCB aluminum plate with high quality aluminum, good heat sinking and long lifespan.



4. product housing use retardant engineering plastic shell, high reliability.



5. CE/RoHS certificates, IP65 protection class testing.



Installation



Installed on the box bottom, back glue scheduled, fixed with screw



Cascade can cut, 1pcs modules can be cut



Warranty



5 years



Electric Parameters



    Part No.

  Color

  CCT(K)



Beam angle

       (°)

    Output

  (lm/piece)

   CRI

    Ra

Luminous efficacy

          (lm/W)

  Voltage

  (V DC)

 Current

   (mA)

  Power

(W/piece)

  MJW266E

  PW

    6500

   160

     112

    ≥75

         93

     12

  100

    1.2





Other Parameters



Part No.

Color

Standard connection qty(pcs)

Largest qty of cascade for single-ended power supply(pcs)

Largest qty of cascade for double-ended power supply( (pcs)

module weight (g)

Working environment temperature ()

   20

 50

/



                  -25~+60

-25~+70

IP65

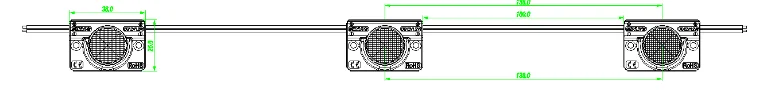

Dimension

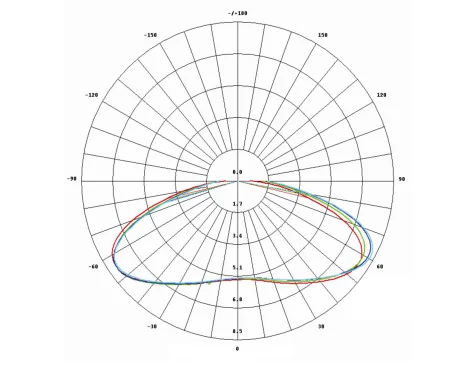

Light Distribution Curve





Packaging & Shipping



product application



Certifications
