Waterproof led 1leds injection molding led module 12V outdoor for light box

FOB Reference Price:Get Latest Price
US $0.36-0.45 / Pieces | 2000 Piece/Pieces & Waterproof led 1leds injection molding led module 12V outd (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Model Number:
MJX264D
Chip Material:
GaAs
Emitting Color:
Pure white
Luminous Intensity:
High brightness
Luminous Flux(lm):
130lm
Optical Attenuation(%):
3
Power:
1.2W-1.5W
Power Dissipation:
0.3W
Viewing Angle(°):
160
Color Rendering Index(Ra):
75
Color Temperature:
6000-6500K
Operating Temperature(℃):
-25 - 60
Storage Temperature(℃):
-25 - 70
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SUNLITE
Certification:
CE, RoHS
Product size:
43*29.5*7mm
Available color:
PW/WW/CW
Item:
SMD LED Module China
Work Voltage:
DC12V Input
LED Type:
EMC3030 LED
Application:
6-20cm thickness of single side light box.
LED QTY:
1pcs
Material:
Aluminum PCB
Warranty:
5years
Product name:
1leds injection molding led module 12V outdoor for light box
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month & Waterproof led 1leds injection molding led module 12V outdoo
Packaging & Delivery
Packaging Details
1. outer carton size:52*37*26cm.
2. 20pcs modules per string, 5 strings of 100pcs modules in each electrostatic bag.;
3. outer carton with 16 bags of 60pcs module, total 1600pcs/carton.;
Waterproof led 1leds injection molding led module 12V outdoor for light box
Port
Shenzhen
Lead Time :
Shipped in 10 days after payment

    Waterproof led 1leds injection molding led module 12V outdoor for light box


Product Description



Application



Applicable placeShopping malls, airport, subway, bus station and other places of single-side light box.



Scope of application: 6-20cm thickness of single side light box.

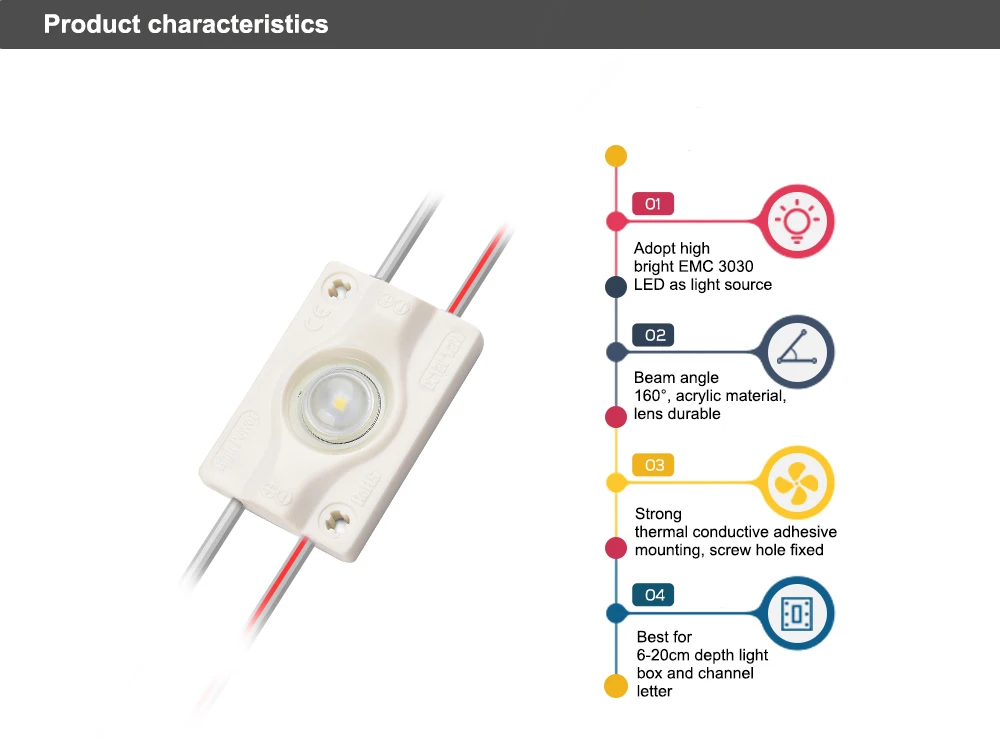

Product Features

1. Product use flame retardant engineering plastics shell, high reliability.



2. Use EMC light source, low lumens depreciation, fast heat dissipation, high efficiency.



3. PCB aluminum plate with high quality aluminum, good heat sinking and long lifespan.



4. constant current drive, ensure the product stable performance, long life, good brightness uniformity.



5. CE/RoHS certificates, IP65 protection class testing.



Installation



Back PE adhesive tape scheduled, fixed with screw.



Cascade can cut, 1pcs modules can be cut.



Warranty



5 years



Electric Parameters



Part No.

Color

CCT(K)



Beam angle

(°)

Output

(lm/piece)

CRI

Ra

Luminous efficacy

(lm/W)

Voltage

(V DC)

Current

(mA)

Power

(W/piece)

    MJW264D

PW

6000

160

112

≥75

93

12

100

1.2







Other Parameters



Part No.

Color

Standard connection qty(pcs)

Largest qty of cascade for single-ended power supply(pcs)

Largest qty of cascade for double-ended power supply( (pcs)

module weight (g)

Working environment temperature (°C)

20

50

/



 -25~+60

-25~+70

IP65

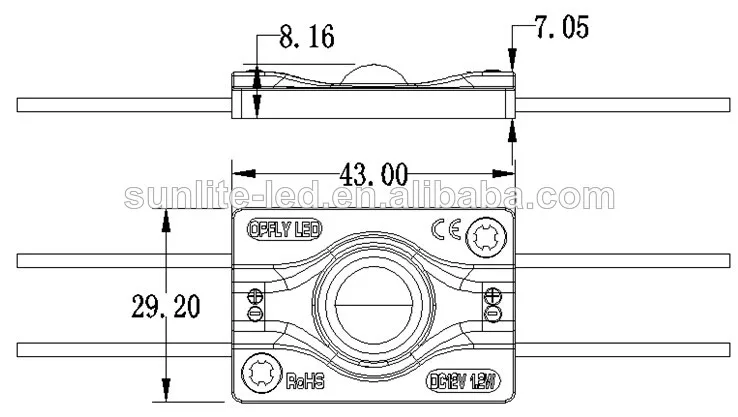

Dimension


Packaging & Shipping

 standard packing



 shipping





Product application


.jpg

Certifications

LED module certificate.jpg
