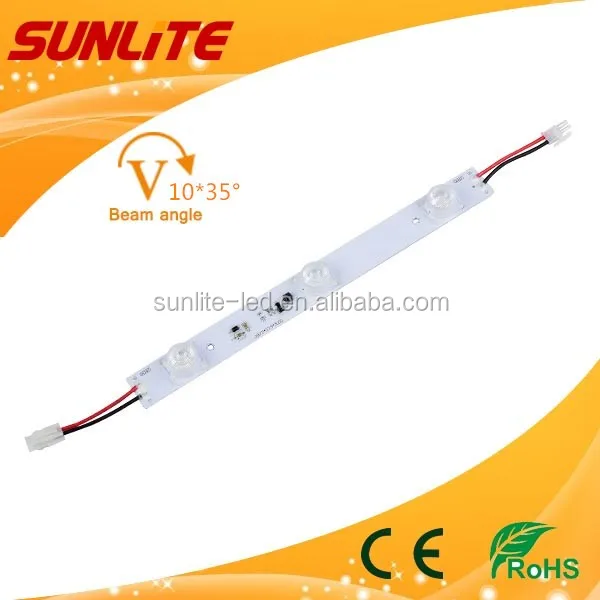

Tube led light CREEXPE LED light bars for box lighting big power with lens Aluminum PCB

FOB Reference Price:Get Latest Price
US $3.47-3.97 / Piece | 500 Piece/Pieces Tube led light CREEXPE LED light bars for box lighting Aluminum (Min. Order)
Supply Ability:
10000 Piece/Pieces per Month Tube led light CREEXPE LED light bars for box lighting Aluminum
Port:
Shenzhen, Guangdong
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Model Number:
DIW435E
Chip Material:
GaAs
Emitting Color:
pure white
Luminous Flux(lm):
690
Optical Attenuation(%):
0.3
Power:
7W
Power Dissipation:
7W
Viewing Angle(°):
10*35
Color Rendering Index(Ra):
75
Color Temperature:
6000-6500k
Operating Temperature(℃):
-25 - 60
Storage Temperature(℃):
-25 - 70
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
CREE
Certification:
CE, RoHS
LED Type:
CREE XPE
LED Chip:
3 chips
Voltage:
DC 24V
Warranty:
3 years
IP Grade:
IP33
Lighting efficiency:
690lm
Product size:
517*27*15mm
CRIra:
≥75
Available color:
Pure white only
Product name:
Tube led light CREEXPE LED light bars for box lighting Aluminum PCB
Packaging & Delivery
Packaging Details
Packing instruction:
1.outer carton size:52*37*26cm
2.20pcs modules per string, 5 strings of 100pcs modules in each electrostatic bag
3.outer carton with 12 bags of 100pcs module, total 1200pcs/carton
4.Net Weight(NW):19.08(1-10%)kg;
5.Gross weight(GW):19.64(1-10%)kg;
6.the number of packages and weight is for above packing way, there will exist difference if for other packing way.
Tube led light CREEXPE LED light bars for box lighting big power with lens Aluminum PCB
Delivery Time
8 - 10days
Product Description

 LED Lens light bar XPE most big powerful lighting pole Aluminum PCB 24V voltage CE ROHS 7Watts

 Specifications



-7W super high power LED module , adpot original CREE led from US. High quality
-with alu pcb bar which good for heat disspati

  DC24V  7W 3 light 300*26*15mm  10*35°Optical len                                                                                                                 DC24V  12W 5 light 500*26*15mm  10*35°Optical lens

high power LED rigid bar apply to 10-20cm thickness of double-side light box, high lumens, high quality



1. Product size: 300*26*15mm

2. Voltage: 24V Dc

3. Led current: 690mA

4. Power: 7W/pcs

5. 3pcs cree high power led

6. Lumen: 690lm

7. CCT: 6000-6500K

8. lens angle: 10*35degree

9. Working tempreture:-30-60 degree

10. Storage tempreture:-40-65 degree

11.Life span: 50000H

12.Warranty: 3 years.



 Electric Parameters:

Part No.

Color

  CCT(K)



Beam angle

(°)

Output

(lm/piece)

CRI

Ra

Luminous efficacy

(lm/W)

Voltage

(V DC)

Current

(mA)

Power

(W/piece)

DIW435E

CREE

XPE

6000-6500K

3pcs

690

10*35°

24

300*26*15

IP65

7

DIW436E

CREE

XPE

6000-6500K

5pcs

1150

10*35°

24

500*26*15

IP65

12



Dimension:

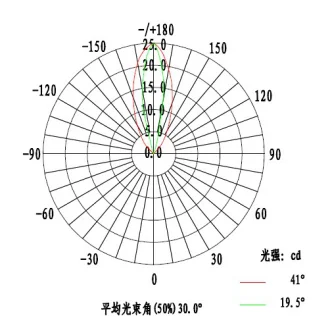

Light Distribution Curve:

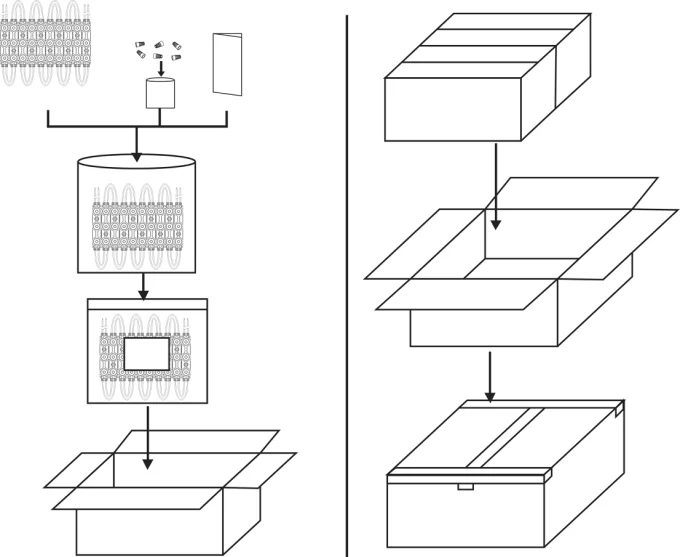

Packing:

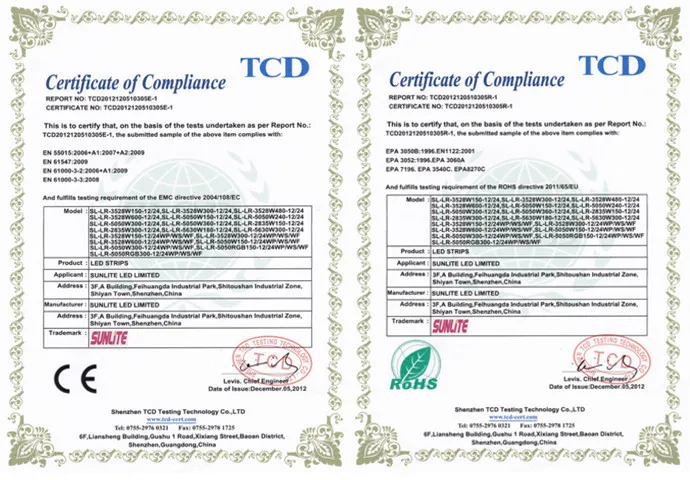

Certification
