CE and Rohs certificate SMD 2835 led strip lighting flexible led strip light

FOB Reference Price:Get Latest Price
US $16.72-17 / Rolls | 10 Roll/Rolls (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Light Strips
LED Light Source:
SMD2835
Type:
Flex LED Strips
Input Voltage(V):
12
Lamp Power:
72
Lamp Luminous Flux(lm):
6000
CRI (Ra>):
80
Color Temperature(CCT):
PW (6000-6500K)
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Copper
Certification:
CE, RoHS
Emitting Color:
White
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SUNLITE
Model Number:
SL-LR-2835W300-12
Reel length:
5 meters
warranty:
3 years
IP Rating:
IP20/IP65/IP67/IP68
Warranty:
3years
Voltage:
DC24V/12V
Application:
Decorative Lighting
Supply Ability
Supply Ability:
400000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
50rolls/carton, size:44*34*29cm
Port
Shenzhen
Lead Time :
3-5days for sample order 7-10 days for nrmal order

CE and Rohs certificate 2835 led strip/ flexible led strip



Specifications:



1.Voltage:12/24VDC
2.Beam Angle:120 degrees
3.CE,ROHS,3 years
4.Decorative lights for holiday,event, show





Features



  • Adopts high brightness 5630LED as light source.
  • The PCB board is made of soft FPC material which has the superior capacity of high temperature resistance.
  • Driven by constant voltage 24V DC, safety and reliable.
  • 6pcs of SMD 5630 as a unit which can be cut, stick 3M adhesive easy for installation.

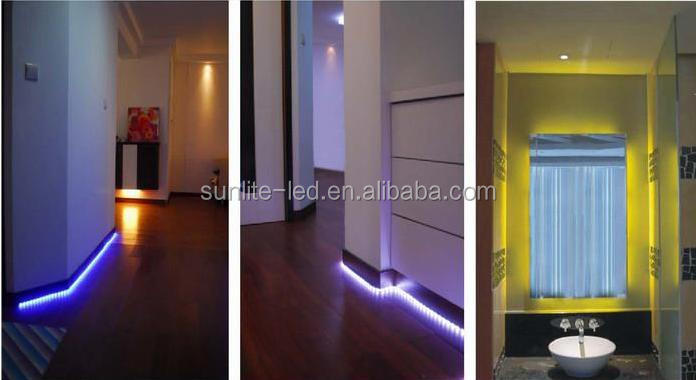

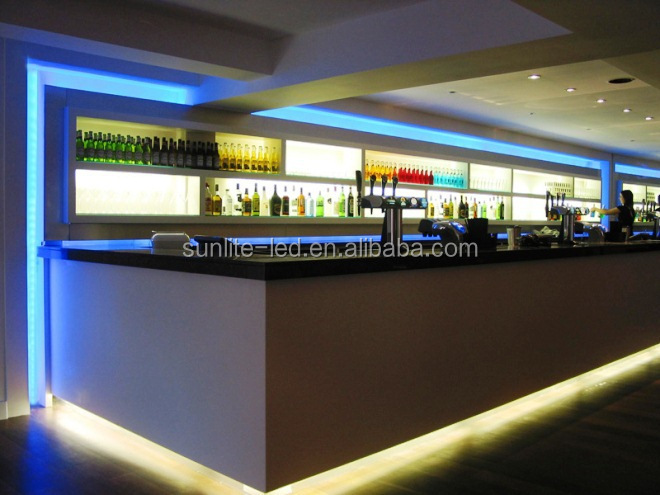

Application

  • Cove lighting
  • Path and contour marking
  • Backlight or edge lighting for signature
  • Decorative lights for holiday, show and event
  • Architectural lights for canopy, corridor and archway

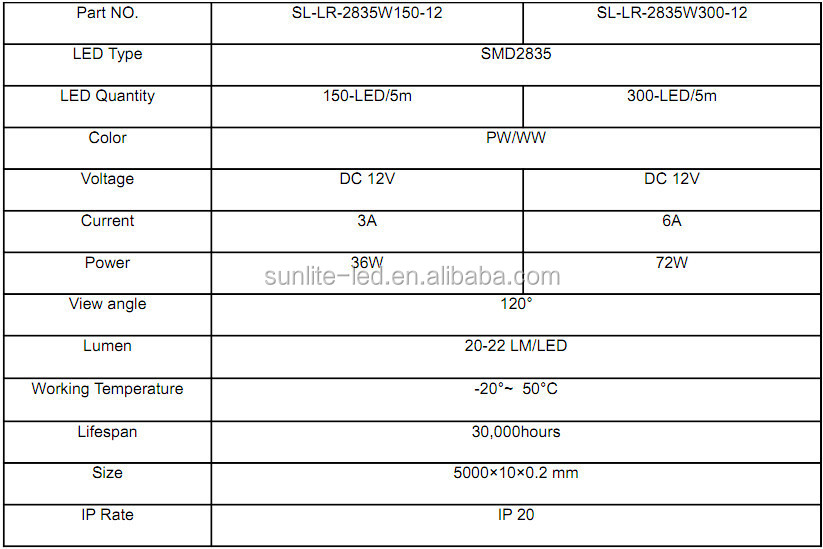

Technical Parameter

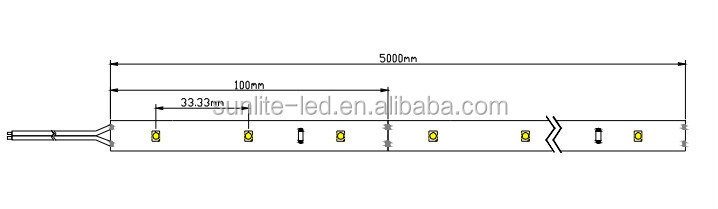

Structure Drawing









Connection Diagram

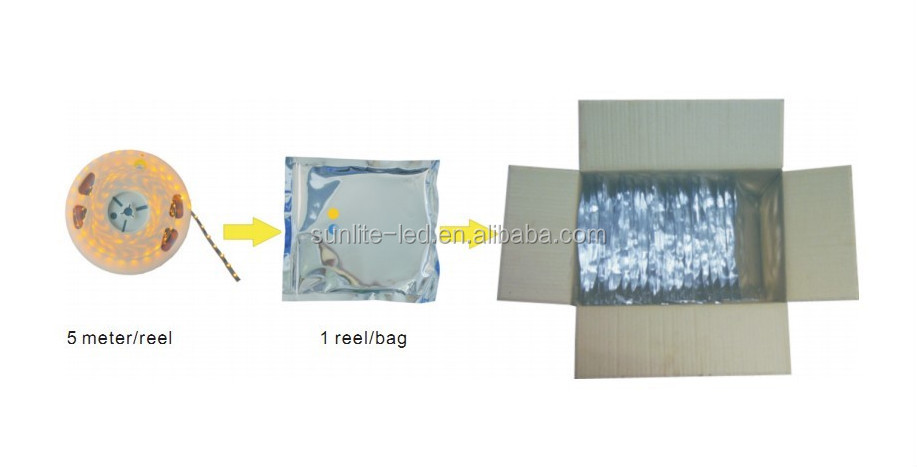

Package

















Our Service
1. Reply your inquiry within 24 working hours
2. Customized design is available, OEM and ODM are welcomed
3. Deliver the goods to our customers all over the world with speed and precision
4. 3-year warranty on our reliable high quality LED products
