1.2w LED Module/ High Power LED Injection Module/ sign led module

FOB Reference Price:Get Latest Price
US $0.75-0.79 / Pieces | 50 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Model Number:
MJX264D
Chip Material:
GaAs
Emitting Color:
Cool White
Luminous Flux(lm):
112lm
Optical Attenuation(%):
3
Power:
1.2W
Viewing Angle(°):
160
Color Rendering Index(Ra):
75
Color Temperature:
6000-6500K
Operating Temperature(℃):
-25 - 60
Storage Temperature(℃):
-25 - 70
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SUNLITE
Certification:
CE, RoHS
Product Size:
43*29.5*7mm
Available Color:
PW/WW/CW/R
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
20pcs modules per string, 5 strings of 100pcs modules in each electrostatic bag, total 1600pcs/carton
Lead Time :
8-10 days

Application

Applicable place: Shopping malls, airport, subway, bus station and other places of single-side light box.

Scope of application: 6-20cm thickness of single side light box.





Product Features

1. product use flame retardant engineering plastics shell, high reliability.

2. Use EMC light source, low lumens depreciation, fast heat dissipation, high efficiency.

3. PCB aluminum plate with high quality aluminum, good heat sinking and long lifespan.

4. constant current drive, ensure the product stable performance, long life, good brightness uniformity.

5. CE/RoHS certificates, IP65 protection class testing.





Installation

Installed on the box bottom, back glue scheduled, fixed with screw.

Cascade can cut, 1pcs modules can be cut.





Warranty

3 years or 13000 hours





Electric Parameters



Part No.

Color

CCT(K)



Beam angle

(°)

Output

(lm/piece)

CRI

Ra

Luminous efficacy

(lm/W)

Voltage

(V DC)

Current

(mA)

Power

(W/piece)

MJW264D

PW

6000

160

112

≥75

93

12

100

1.2

MJR264D

Red

620~625

160

24

≥75

20

12

100

1.2







Other Parameters



Part No.

Color

Standard connection qty(pcs)

Largest qty of cascade for single-ended power supply(pcs)

Largest qty of cascade for double-ended power supply( (pcs)

module weight (g)

Working environment temperature (°C)

20

50

/



 -25~+60

-25~+70

IP65





Remark:

1. Testing environment temperature is 25±2°C.

2. The above data are typical values, the actual data of the product may be different from the typical data. Data is subject to change without prior notice.

3. The modules are high-power products, can not use double-side power supply method.

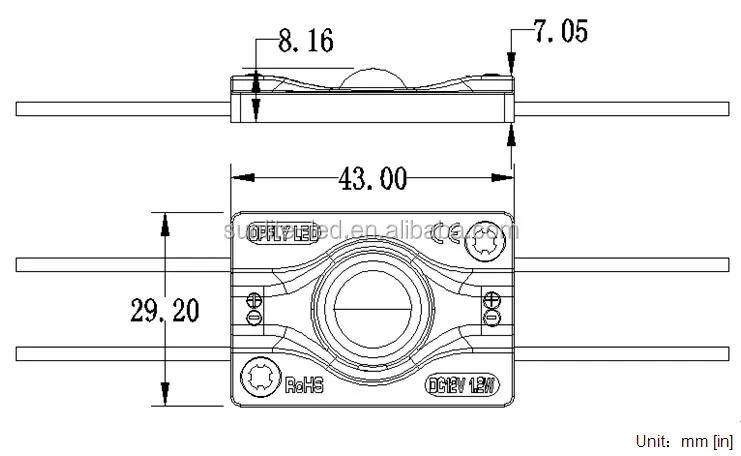

Dimension
