3-SMD5050 led module/0.72w injection led module/12v 5050 smd led modules

FOB Reference Price:Get Latest Price
US $0.39-0.43 / Piece | 100 Piece/Pieces (Min. Order)
Supply Ability:
1000000 Piece/Pieces per Month
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Model Number:
MDX222B-P
Chip Material:
GaAs
Emitting Color:
Pure White
Luminous Intensity:
high brightness
Luminous Flux(lm):
66lm
Power:
0.72W
Viewing Angle(°):
160
Color Rendering Index(Ra):
75
Color Temperature:
6000-6500K
Operating Temperature(℃):
-25 - 60
Storage Temperature(℃):
-25 - 70
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SUNLITE
Certification:
CE, RoHS
product size:
66*16mm
Available Color:
R/G/B/Y/PW/WW/CW
Packaging & Delivery
Packaging Details
20pcs modules per string, 5 strings of 100pcs modules in each electrostatic bag, total 100pcs/carton.
Delivery Time
8-10 days

Specifications

1. TOP 5050LED as light source, no light spot, low decay and good consistency.
2. With PC cover

Application



Applicable place:blister characters, metal characters, billboard, black and white board, light box etc.

Scope of application:6~12cm thickness sign boards.



Product Features



1. Lighting source adopt SMD5050, 2835, 5730LED;

2. Injection craft, aluminum pcb good for heat dissipation,with good protect effect;

3. Approved CE,RoHS certificates, fire rating UL94 V-0 test.



Installation



Back PE adhesive tape scheduled, fixed with screw;

Cascade can cut, 1pcs modules can be cut



Warranty



3years or 13000 hours







Electric Parameters

Part No.

Color

CCT(K)



Beam angle

(°)

Output

(lm/piece)

CRI

Ra

Luminous efficacy

(lm/W)

Voltage

(V DC)

Current

(mA)

Power

(W/piece)

MDN222B

WW

3000

120/160

66/90/140

≥75

92/81/ 97

12

60/90/ 120

5050:0.722835:0.722835:1.105730:1.44

MDW222B

PW

6000

MDC222B

CW

9000

MDR222B

Red

620~625

18

--

25

MDG222B

Green

525~530

55.5

--

77

MDB222B

Blue

465~470

15

--

21

MDY222B

Yellow

585~590

16.5

--

23





Other Parameters

Standard connection qty(pcs)

Largest qty of cascade for single-ended power supply(pcs)

Largest qty of cascade for double-ended power supply( (pcs)

module weight (g)

Working environment temperature (°C)

Storage environment temperature (°C)

IP grade

50

50

100



 -25~+60

-25~+70

IP65

Remark:

1.  Testing environment temperature is 25±2°C;

2.  The above data are typical values, the actual data of the product may be different from the typical data. Data is subject to change without prior notice.

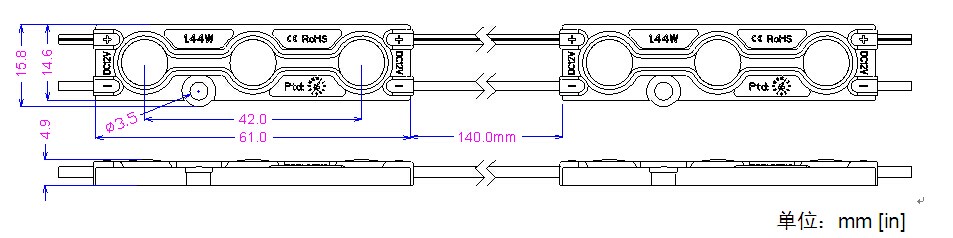

Dimension







Packaging & Shipping









Production Flow







Product Application





Our Service

1. Reply your inquiry within 24 working hours

2. Customized design is available, OEM and ODM are welcomed

3. Deliver the goods to our customers all over the world with speed and precision

4. 3-year warranty on our reliable high quality LED products
