4-SMD5050 constant voltage 12V 1W Injection Module

FOB Reference Price:Get Latest Price
US $0.32-0.36 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Model Number:
MDX212B
Chip Material:
GaAs
Emitting Color:
Pure White
Luminous Intensity:
high brightness
Luminous Flux(lm):
88lm
Power:
1W
Viewing Angle(°):
140
Color Rendering Index(Ra):
75
Color Temperature:
6000-6500K
Operating Temperature(℃):
-25 - 60
Storage Temperature(℃):
-25 - 70
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SUNLITE
Certification:
CE, RoHS
Product size:
56*33mm
Available Color:
R/G/B/Y/PW/WW/CW
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
20pcs modules per string, 5 strings of 100pcs modules in each electrostatic bag.total 1000pcs/carton.
Port
Shenzhen
Lead Time :
8-10days

Specifications

1. TOP 5050 LED as light source, no light spot, low decay and good consistency.
2. Injection outer cover, IP65

Application:

 Applicable place:blister characters, metal characters, billboard, black and white board, light box etc.

Scope of application:6~12cm thickness sign boards.





Product Features:

1.Lighting source adopt SMD5050 LED.

2.Injection craft with good protect effect.

3.Maximum qty per string can catch up to 50pcs.

4.Approved CE,RoHS certificates, fire rating UL94 V-0 test.



Installation:

 Back PE adhesive tape scheduled, fixed with screw;

Cascade can cut, 1pcs modules can be cut



Warranty:

3years or 13000 hours



Electric Parameters

Part No.

Color

CCT(K)



Beam angle

(°)

Output

(lm/piece)

CRI

Ra

Luminous efficacy

(lm/W)

Voltage

(V DC)

Current

(mA)

Power

(W/piece)

MDN212B

WW

3000

120

88

≥75

91

12

80

0.96

MDW212B

PW

6000

MDC212B

CW

9000

MDR212B

Red

620~625

24

--

25

MDGX212B

Green

525~530

74

--

77

MDB212B

Blue

465~470

20

--

20

MDY212B

Yellow

585~590

22

--

22



Other Parameters:

Standard connection qty(pcs)

Largest qty of cascade for single-ended power supply(pcs)

Largest qty of cascade for double-ended power supply( (pcs)

module weight (g)

Working environment temperature (°C)

Storage environment temperature (°C)

IP grade

20

50

100

11.20

 -25~+60

-25~+70

IP65

Remark:

 1.  Testing environment temperature is 25±2°C;

2. The above data are typical values, the actual data of the product may be different from the typical data. Data is subject to change without prior notice.

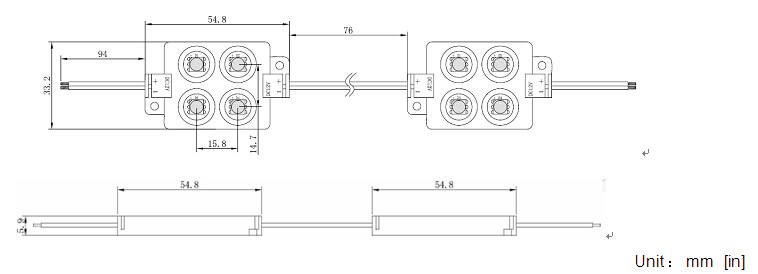

Dimension:
