high power led module for light box/ 3w cree led module

FOB Reference Price:Get Latest Price
US $1.5-1.59 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Model Number:
MIX263E
Chip Material:
GaAs
Emitting Color:
Pure White
Luminous Intensity:
high brightness
Luminous Flux(lm):
210lm
Power:
3W
Viewing Angle(°):
38-42
Color Rendering Index(Ra):
75
Color Temperature:
6000-6500K
Operating Temperature(℃):
-25 - 60
Storage Temperature(℃):
-25 - 70
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SUNLITE
Certification:
CE, RoHS
product size:
58*38*13.2mm
Available color:
PW/WW/CW
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
30pcs modules per string, 2 strings of 60pcs modules in each electrostatic bag, total 1500pcs/carton.
Port
Shenzhen
Lead Time :
8-10days

Specifications

cree led module, high quality
Adopt cree led as lighting source
1-3W/pcs, 120-210lm/pcs

high power led module/ cree led module for light box,  round mirror light box.





Application - LED Light box



Applicable place: Shopping malls, airport, subway, bus station and other places of single-side light box.



Scope of application: 8-20cm thickness of single side light box



14-40cm thickness of double side light box.





Product Features



1. product use flame retardant engineering plastics shell, high reliability.



2. using CREE light source, light efficiency is as high as 112lm/w.



3. PCB aluminum plate with high quality aluminum, good heat sinking and long lifespan.



4. constant current drive, ensure the product stable performance, long life, good brightness uniformity.



5. CE/RoHS certificates, IP65 protection class testing.





Installation



Installed on the side of box, back glue scheduled, fixed with screw



Cascade can cut, 3pcs modules can be cut





Warranty

3years or 13000 hours





Electric Parameters

Part No.

Color

CCT(K)



Beam angle

(°)

Output

(lm/piece)

CRI

Ra

Luminous efficacy

(lm/W)

Voltage

(V DC)

Current

(mA)

Power

(W/piece)

MIX263E

PW

6000

38

200

≥75

70

12

700

8.5



Note: a unit(3pcs modules) total power is 8.5W, a single is 2.8W, need with high quality aluminum profile





Other Parameters

Part No.

Color

Standard connection qty(pcs)

Largest qty of cascade for single-ended power supply(pcs)

Largest qty of cascade for double-ended power supply( (pcs)

module weight (g)

Working environment temperature (°C)

Storage environment temperature (°C)

IP grade

MIX263E

Pure White

15

15

--



 -25~+60

-25~+70

IP65



Remark:



1. Testing environment temperature is 25±2°C;



2.  The above data are typical values, the actual data of the product may be different from the typical data. Data is subject to change without prior notice.



3. The modules are high-power products, can not use double-side power supply method.

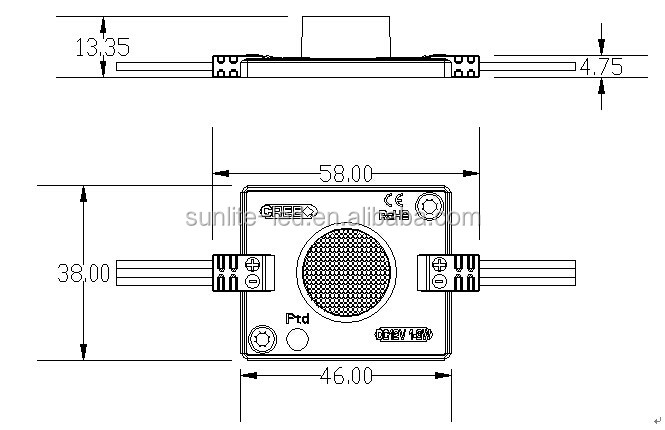

Dimension
