3w injection led module/ cree led module/ 1-led led modules china

FOB Reference Price:Get Latest Price
US $1.45-1.51 / Pieces | 51 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Model Number:
MIX262D
Chip Material:
GaAs
Emitting Color:
Cold White
Luminous Intensity:
high brightness
Luminous Flux(lm):
210lm
Power:
3W
Viewing Angle(°):
160
Color Rendering Index(Ra):
75
Color Temperature:
10000-12000K
Operating Temperature(℃):
-25 - 60
Storage Temperature(℃):
-25 - 70
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SUNLITE
Certification:
CE, RoHS
product size:
58*38*7.8mm
Available Color:
WW/PW/CW
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
15pcs modules per string, 4 strings of 60pcs modules in each electrostatic bag.total 1500pcs/carton.
Port
Shenzhen
Lead Time :
8-10days

Specifications

1.using CREE light source, light efficiency is as high as 112lm/w.
2.constant current drive, ensure the product stable performa

high power Cree LED sign module for signage lighting and light box.





Application - LED Light box





Applicable place: Shopping malls, airport, subway, bus station and other places of single-side light box.



Scope of application: 8-20cm thickness of single side light box





Product Features





1. product use flame retardant engineering plastics shell, high reliability.



2. using CREE light source, light efficiency is as high as 112lm/w.



3. PCB aluminum plate with high quality aluminum, good heat sinking and long lifespan.



4. constant current drive, ensure the product stable performance, long life, good brightness uniformity.



5. CE/RoHS certificates, IP65 protection class testing.





Installation





Installed on the box bottom, back glue scheduled, fixed with screw



Cascade can cut, 3pcs modules can be cut





Warranty:



3 years or 13000 hours







Electric Parameters



Part No.

Color

CCT(K)



Beam angle

(°)

Output

(lm/piece)

CRI

Ra

Luminous efficacy

(lm/W)

Voltage

(V DC)

Current

(mA)

Power

(W/piece)

MIX262D

PW

6000

160

200

≥75

70

12

700

8.5



Note: a unit(3pcs modules) total power is 8.5W, a single is 2.8W, need with high quality aluminum profile







Other Parameters



Part No.

Color

Standard connection qty(pcs)

Largest qty of cascade for single-ended power supply(pcs)

Largest qty of cascade for double-ended power supply( (pcs)

module weight (g)

Working environment temperature (°C)

Storage environment temperature (°C)

IP grade

MIX262D

PW

15

15

--



 -25~+60

-25~+70

IP65







Remark:



1.  Testing environment temperature is 25±2°C;



2.  The above data are typical values, the actual data of the product may be different from the typical data. Data is subject to change without prior notice.



3.  The modules are high-power products, can not use double-side power supply method.

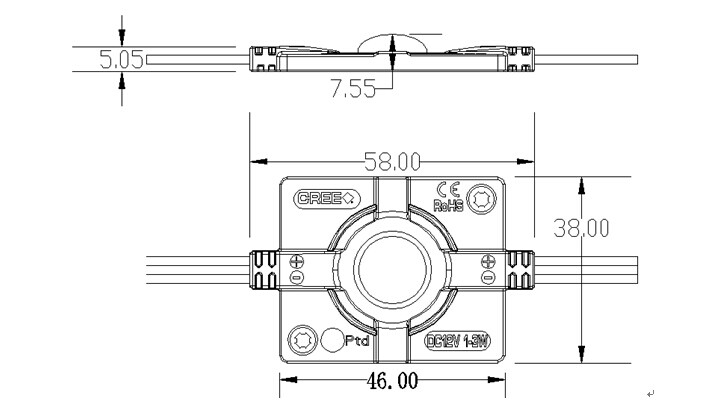

Dimension

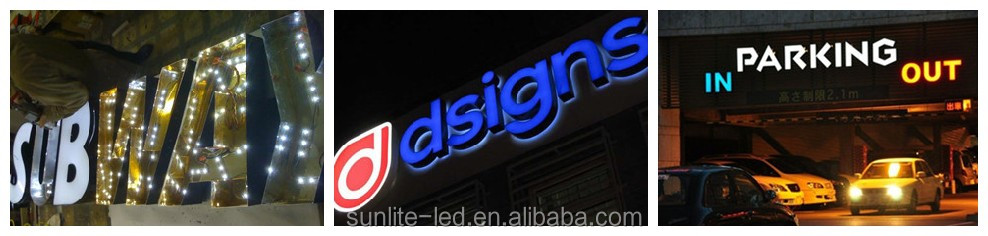

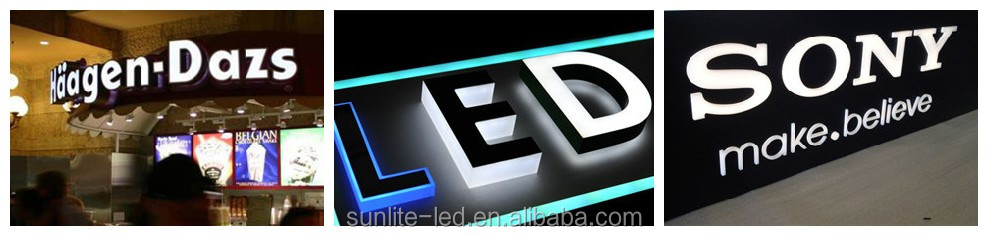

Project Case
