12V 1.44W smd led injection module RGB waterproof

FOB Reference Price:Get Latest Price
US $0.47-0.5 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Model Number:
MDQ212B
Chip Material:
GaAs
Emitting Color:
RGB
Luminous Intensity:
high brightness
Luminous Flux(lm):
72
Power:
1.44W
Viewing Angle(°):
140
Color Rendering Index(Ra):
75
Color Temperature:
6000-6500K
Operating Temperature(℃):
-25 - 70
Storage Temperature(℃):
-25 - 60
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SUNLITE
Certification:
CE, RoHS

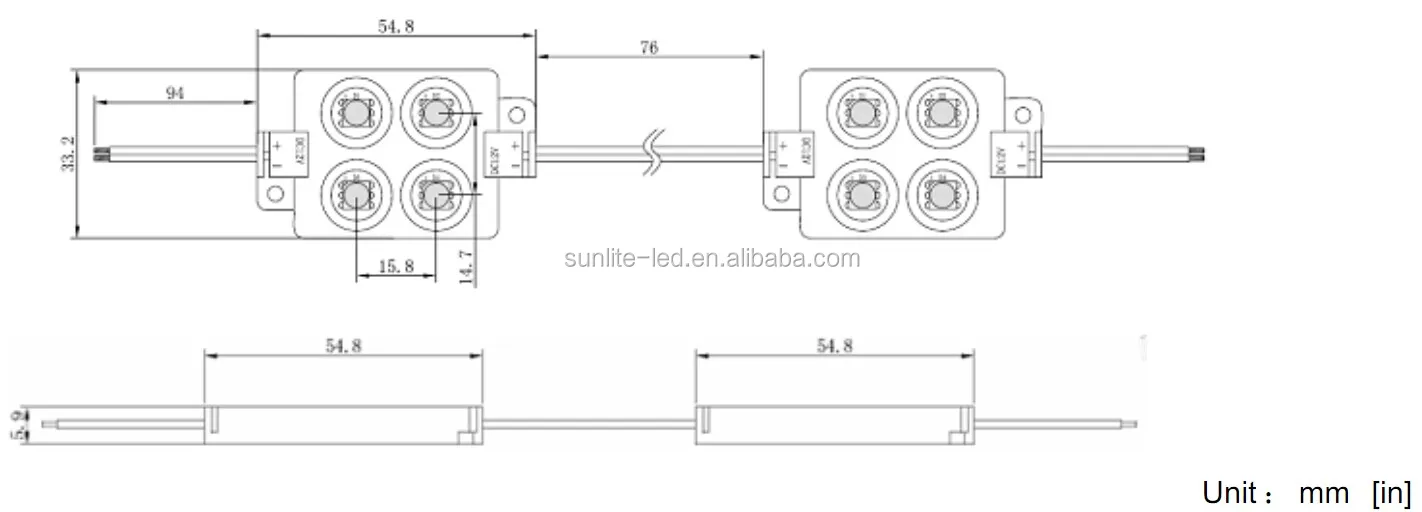

product size:
56*33mm
Application:
characters, billboard, light box etc.
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
20pcs modules per string, 5 strings of 100pcs modules in each electrostatic bag.total 1000pcs/carton.
Port
Shenzhen
Lead Time :
8-10 days

led module RGB/ 1.44W injection led module/ smd led module



Application



 Applicable place:blister characters, metal characters, billboard, black and white board, light box etc.

Scope of application:6~12cm thickness sign boards.



Product Features



1. product use flame retardant engineering plastics shell, high reliability.

2,Use EMC light source, low lumens depreciation, fast heat dissipation, high efficiency.

4. CE/RoHS certificates, IP65 protection class testing.



Installation



Installed on the box bottom, back glue scheduled, fixed with screw

Cascade can cut, 1pcs modules can be cut



Warranty



3years or 13000 hours



Electric Parameters





Part No.

Color

CCT(nm)



Beam angle

(°)

Output

(lm/piece)

CRI

Ra

Voltage

(V DC)

Current

(mA)

Power

(W/piece)

MDQ212B

Red

620~625

120

6

--

12V

120

1.44W

Green

525~530

13.5

--

Blue

465~470

3

--





Other Parameters





Standard connection qty(pcs)

Largest qty of cascade for single-ended power supply(pcs)

Largest qty of cascade for double-ended power supply( (pcs)

module weight (g)

Working environment temperature (°C)

Storage environment temperature (°C)

IP grade

20

50

100

11.20

 -25~+60

-25~+70

IP65



Remark:

1,The thickness for the power line depends on the maximum current, product power and wire length(suggest not exceed 5m) and low voltage transmission line loss.

2,The maximum connection qty is 20 pcs module.

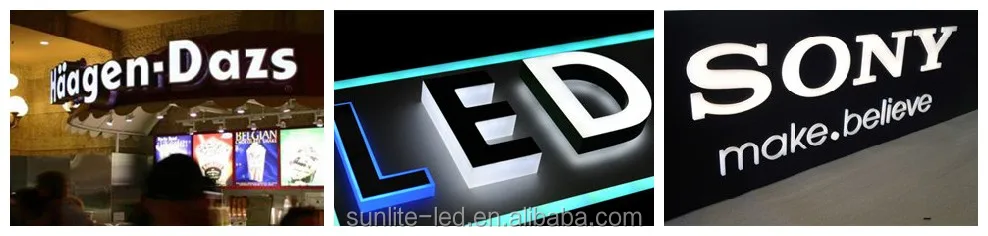

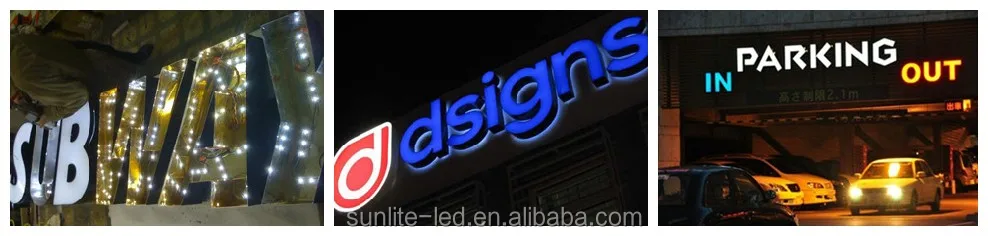

  Project case

application 1.jpg

application 2.jpg
