Quick Details

  • Type: LED Modules
  • Model Number: MFX223B-T
  • Chip Material: GaAs
  • Emitting Color: Cool White
  • Luminous Flux(lm): 140lm
  • Optical Attenuation(%): 3
  • Power: 1.44W
  • Viewing Angle(°): 160
  • Color Rendering Index(Ra): 75
  • Color Temperature: 6000-6500K
  • Operating Temperature(℃): -25 - 60
  • Storage Temperature(℃): -25 - 70
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SAMSUNG 5630
  • Certification: CE, RoHS
  • Product size: 81*16mm
  • Available color: PW/CW/WW

Packaging & Delivery

Packaging Details 20pcs modules per string, 50 strings of 100pcs modules in each electrostatic bag, total 1000pcs/carton.
Delivery Time 8-10 days

Application

Applicable place:blister characters, metal characters, billboard, black and white board, light box etc.

Scope of application:6~12cm thickness sign boards.





Product Features

1. Original SAMSUNG 5630 LED as light source, high stable and reliable.

2. Injection craft, aluminum pcb good for heat dissipation,with good protect effect.

3. Approved CE, RoHS certificates, fire rating UL94 V-0 test.

4. with lens wide beam angle 160 degrees.





Installation

Back PE adhesive tape scheduled, fixed with screw.

Cascade can cut, 1pcs modules can be cut.





Warranty

3 years or 13000 hours







Electric Parameters



Part No.

Color

CCT(K)



Beam angle

(°)

Output

(lm/piece)

CRI

Ra

Luminous efficacy

(lm/W)

Voltage

(V DC)

Current

(mA)

Power

(W/piece)

MFW223B-T

WW

3000

160

140

≥75

97

12

120

1.44

PW

6000

CW

9000







Other Parameters



Standard connection qty(pcs)

Largest qty of cascade for single-ended power supply(pcs)

Largest qty of cascade for double-ended power supply( (pcs)

module weight (g)

Working environment temperature (°C)

Storage environment temperature (°C)

IP grade

20

50

100

11.20

 -25~+60

-25~+70

IP65





Remark:

 1. Testing environment temperature is 25±2°C.

 2. The above data are typical values, the actual data of the product may be different from the typical data. Data is subject to change without prior notice.

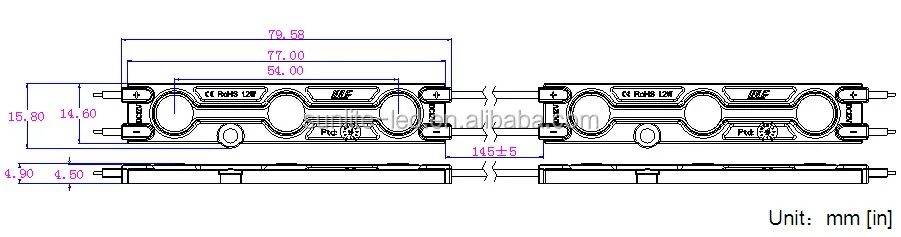

Dimension
