1-LED 12V 3W Injection Module

FOB Reference Price:Get Latest Price
US $0.9-0.95 / Pieces | 1000 Piece/Pieces &CREE 1-LED 12V 3W Injection Module (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Model Number:
MIX262D
Chip Material:
GaAs
Emitting Color:
Pure White
Luminous Intensity:
high brightness
Luminous Flux(lm):
210lm
Optical Attenuation(%):
3
Power:
2W
Power Dissipation:
0.3%
Viewing Angle(°):
160
Color Rendering Index(Ra):
75
Color Temperature:
6000-6500K
Operating Temperature(℃):
-25 - 60
Storage Temperature(℃):
-25 - 70
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SUNLITE
Certification:
CE, RoHS
product size:
58*38*7.8mm
Available Color:
WW/PW/CW
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month &CREE 1-LED 12V 3W Injection Module
Packaging & Delivery
Packaging Details
1.outer carton size:52*37*26cm.
2.30pcs modules per string, 2 strings of 60pcs modules in each electrostatic bag.
3.outer carton with 25 bags of 60pcs module, total 1500pcs/carton.
CREE 1-LED 12V 3W Injection Module
Port
Shenzhen
Lead Time :
8-10days

    CREE 1-LED 12V 3W Injection Module

Application - LED Light box:





Applicable place: Shopping malls, airport, subway, bus station and other places of single-side light box.



Scope of application: 8-20cm thickness of single side light box





Product Features:





1. product use flame retardant engineering plastics shell, high reliability.



2. using CREE light source, light efficiency is as high as 112lm/w.



3. PCB aluminum plate with high quality aluminum, good heat sinking and long lifespan.



4. constant current drive, ensure the product stable performance, long life, good brightness uniformity.



5. CE/RoHS certificates, IP65 protection class testing.





Installation:





Installed on the box bottom, back glue scheduled, fixed with screw



Cascade can cut, 3pcs modules can be cut





Warranty:



3 years or 13000 hours







Electric Parameters:



Part No.

Color

CCT(K)



Beam angle

(°)

Output

(lm/piece)

CRI

Ra

Luminous efficacy

(lm/W)

Voltage

(V DC)

Current

(mA)

Power

(W/piece)

MIX262D

PW

6000

160

180

≥75

90

12

500

2



Note: a unit(3pcs modules) total power is 8.5W, a single is 2.8W, need with high quality aluminum profile







Other Parameters:



Part No.

Color

Standard connection qty(pcs)

Largest qty of cascade for single-ended power supply(pcs)

Largest qty of cascade for double-ended power supply( (pcs)

module weight (g)

Working environment temperature (°C)

Storage environment temperature (°C)

IP grade

MIX262D

PW

15

15

--



 -25~+60

-25~+70

IP65







Remark:



1.  Testing environment temperature is 25±2°C;



2.  The above data are typical values, the actual data of the product may be different from the typical data. Data is subject to change without prior notice.



3.  The modules are high-power products, can not use double-side power supply method.

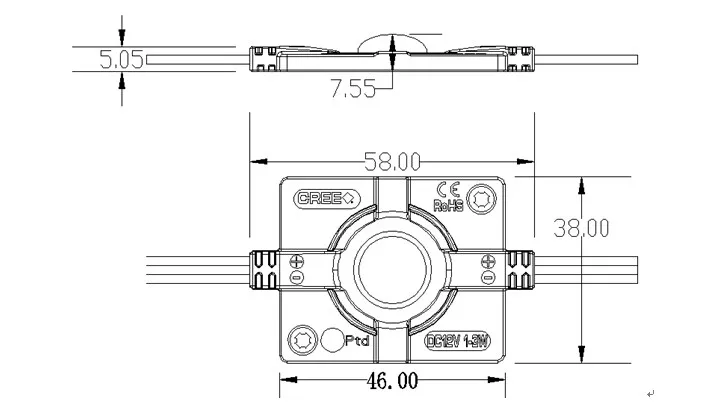

Dimension:



                                CREE 1-LED 12V 3W Injection Module

Packaging & Shipping







Product application



Our exhibition



Our Factory





FAQ
 Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 10000pcs

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 100 pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
