2-SMD5050 constant current 12V 0.48W Injection Module with PC cover

FOB Reference Price:Get Latest Price
US $0.29-0.32 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Model Number:
MDX221B-P
Chip Material:
GaAs
Emitting Color:
Pure White
Luminous Intensity:
high brightness
Luminous Flux(lm):
44lm
Power:
4.8W
Viewing Angle(°):
140
Color Rendering Index(Ra):
75
Color Temperature:
6000-6500K
Operating Temperature(℃):
-25 - 60
Storage Temperature(℃):
-25 - 70
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SUNLITE
Certification:
CE, RoHS

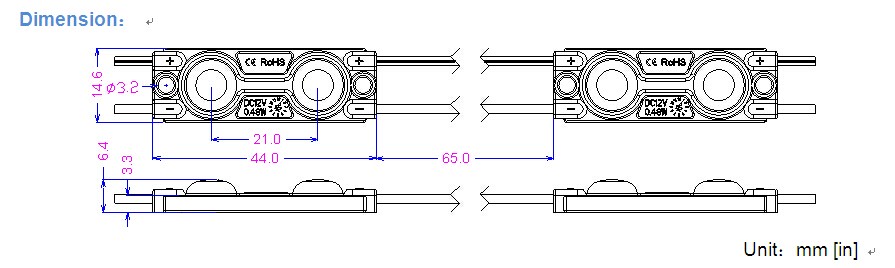

product size:
48*15mm
Available Color:
R/G/B/Y/PW/WW/CW
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
20pcs modules per string, 10 strings of 200pcs modules in each electrostatic bag, total 2400pcs/carton.
Port
Shenzhen
Lead Time :
8-10 days

Specifications

1. TOP 5050LED as light source, no light spot, low decay and good consistency.
2. With PC cover. Protect level: IP65.

Application:



Applicable place:blister characters, metal characters, billboard, black and white board, light box etc.

Scope of application:6~12cm thickness sign boards





Product Features:



1. Lighting source adopt SMD5050, 2835, 5730LED;

2. Injection craft, aluminum pcb good for heat dissipation,with good protect effect;

3. Approved CE,RoHS certificates, fire rating UL94 V-0 test.



Installation:



Back PE adhesive tape scheduled, fixed with screw;

Cascade can cut, 1pcs modules can be cut





Warranty:



3years or 13000 hours





Electric Parameters:

Part No.

Color

CCT(K)



Beam angle

(°)

Output

(lm/piece)

CRI

Ra

Luminous efficacy

(lm/W)

Voltage

(V DC)

Current

(mA)

Power

(W/piece)

MDN221B

WW

3000

120/160

45/60

≥75

94/83

12

40/60

0.48/0.72

MDW221B

PW

6000

MDC221B

CW

9000

MDR221B

Red

620~625

12

--

25

MDG221B

Green

525~530

37

--

77

MDB221B

Blue

465~470

10

--

21

MDY221B

Yellow

585~590

11

--

23



Other Parameters:

Standard connection qty(pcs)

Largest qty of cascade for single-ended power supply(pcs)

Largest qty of cascade for double-ended power supply( (pcs)

module weight (g)

Working environment temperature (°C)

Storage environment temperature (°C)

IP grade

50

50

100



 -25~+60

-25~+70

IP65

Remark:

1.    Testing environment temperature is 25±2°C;

2.    The above data are typical values, the actual data of the product may be different from the typical data. Data is subject to change without prior notice.
